Ladle Turret

Quantity:

slewingtable_1_big

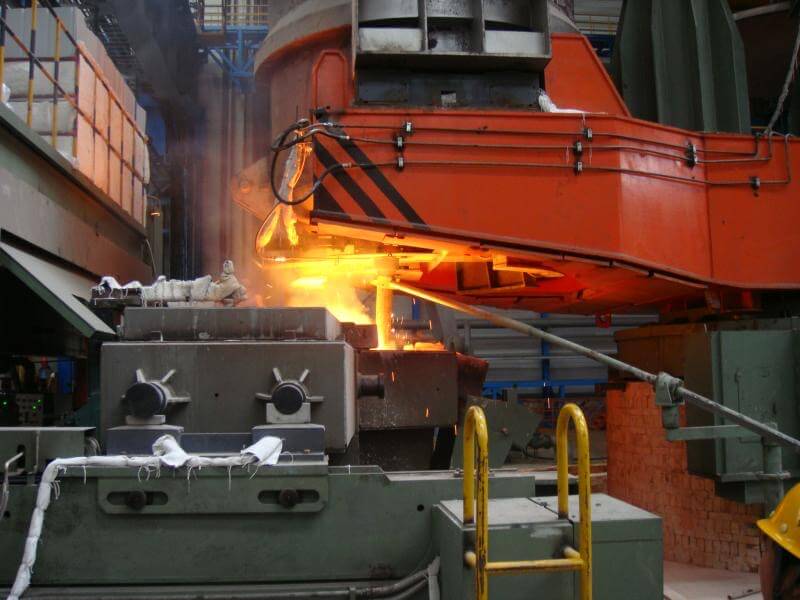

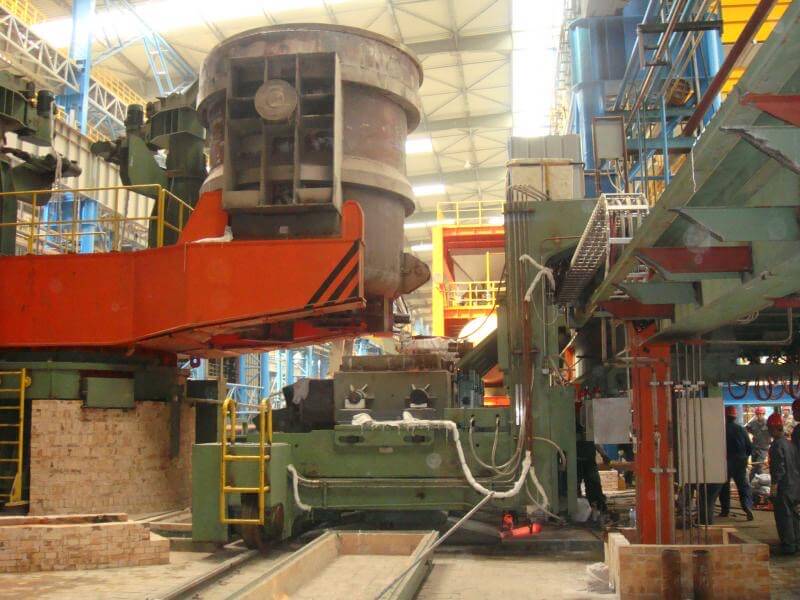

IMG_0029  IMG_0030


Single arm carrying capacity 50t~260t
Turning radius 3.5m~5.4m
Turning speed ~0.5r/min(emergency processing)~1r/min
Rotating angle 360°
Ladle lifting distance Max:850mm
Lifting speed 1-1.8m/min
Main driving frequency motor + speed reducer + active opening gear + intermediate transition gear (optional) + outer gear ring turning support
Brake motor brake, hydraulic brake (coupling position) or barrel hydraulic brake
Lubricating centralized grease lubricating or oil-air lubricating for turning support, oil-air lubricating for opening gear, self-lubricating (using self-lubricating bearing) or centralized grease lubricating for lifting transport parts
